AUTO DIE CUTTING MACHINE

AUTO DIE CUTTING MACHINE
AUTO DIE CUTTING MACHINE
Send Inquiry
Product Code : AUTO DIE CUTTING MACHINE
Brand Name : PMA
Price And Quantity
  • Minimum Order Quantity
  • 2 Unit
  • Price
  • 3500000 INR/Unit
Product Description

Auto Die Cutting Machine
video url:

https://www.youtube.com/watch?v=hNSyCU3AVXM

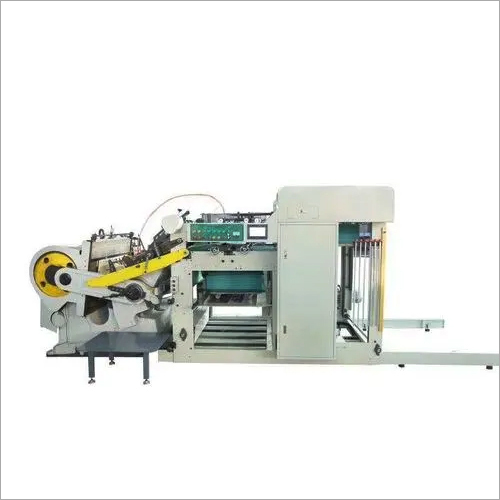

AUTO DIE CUTTING MACHINE



We are the leading manufacturer of auto die cutting machine. With a wide range of auto die cutting machine, our die cutting machines results in more productivity at low cost.  We ensure consistent result at all stages of process, i.e. loading. Feeding, cutting and delivery.

Our auto die cutting machine is equipped with air suction feeder, ensuring precise feeding of all grades of corrugated boards of paper and plastic, then resulting into consistent cutting.

This machine is a highly popular and one time solution of the problems of printing and packaging industry as it is equipped with the following advantages:

  • Saves labour- only one worker can operate the machine
  • Power saving- thereby cost effective
  • Multipurpose: suitable for different grades of paper and plastic
  • Easy to operate
  • Enhanced Productivity: due to more speed, up to 3000 sheets/hour this machine results into more productivity at less time.



SECTIONS:










Text Box: DIE CUTTING SECTION Text Box: DELIVERY SECTION
Text Box: FEEDER SECTION Text Box: FEED TABLE






TECHNICAL SPECIFICATIONS



SR. NO

TECHNICAL SPECIFICATIONS

PMA 1100MM

PMA 1300MM

PMA 1450MM

1

Size of Face plate

850x1160mm





2

Maximum cutting size

790x1090mm

890x1300mm

1000x1450mm

3

Minimum cutting size

360x520mm

480x540mm

540x660mm

4

Thickness of cutting paper

a)      Cardboard paper: 0.2mm-0.3mm

b)      Corrugated paper: 7.8mm

a)      Cardboard paper: 0.2mm-0.3mm

b)      Corrugated paper: 7.8mm

a)      Cardboard paper: 0.2mm-0.3mm

b)      Corrugated paper: 7.8mm

5

Maximum speed

2100 sheets/hour

1900 sheets/hour

1500 sheets/hour

6

Total weight of machine

7500 KG

9500 KG

10700 KG

7

Dimensions

L5900XW2100XH2000mm

L6500XW2200XH2000mm

L7550XW2800XH2300mm



Trade Information
  • Supply Ability
  • 7 Unit Per Day
  • Delivery Time
  • 7 Days
