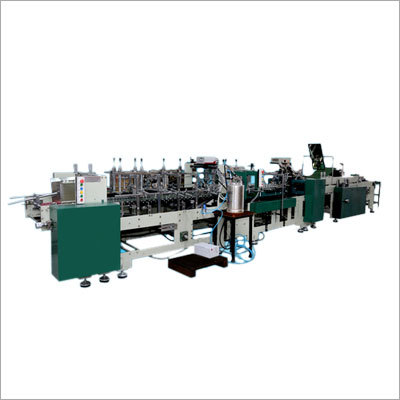

Carton Folder Gluer Machine

Carton Folder Gluer Machine
Carton Folder Gluer Machine
Product Code : Advance
Brand Name : PRECISION MACHINES
Product Description

Our company has gained immense recognition in the industry for manufacturing and exporting High Speed Folding and Gluing Machines. All our manufactured Folding and Gluing Machines are used in pharmaceutical sector, FMCG and for making electrical goods boxes, CFL tube cartons and lot more. In order to enhance the precision and finishing in the gluing process, we have wisely incorporated HHS Gluing System in our High Speed Folding and Gluing Machines. Our offered machines are capable of producing both small cartons as well as bulky cartons.

Features:

  •     HHS gluing system includes : encoder for feedback ,hose pipe ,distributer , controller, 3 guns(dispenser) , pump and tank for glue , the guns having photo electric sensors attached
  •     Friction feeder with clutch drive for independent functioning of the module(Electromagnetic type 24 vdc).
  •     Digital counter for Batch, Total product, and Number of pieces.
  •     Main motor AC with AC variable digital frequency drives system.
  •     Thickness adjustment of tracks: The tracks are based on exuberant  German design it adjust the thickness     of the carton dramatically, In single setting both duplex and three ply may run .
  •     Robust Fabricated Structure:  It is made from heavy grounded 16mm thickness plates so that at high speed the machine may not vibrate
  •     Imported anti-vibration pads are used for leveling and for vibration free operation
  •     Imported Belts for the tracks are used(i.e. nylon sandwich belt)
  •     Glue tank with S.S. body, wheel hard chromium plated.
  •     Variable speed of the end press section through variable dia pully so that the length of the carton could be adjusted easily before final    pressing.
  •     Electromagnetic Striker For Making Batches, it has fast response time and can be adjusted very easily for both A & B side of the carton.
  •     Four fold of the carton is possible and we ensure that there should be proper spring action in the carton for automatic filling of the product
  •     All sealed bearings for avoiding jamming by paper dust
  •     Compressor for HHS gluing system of 6 CFM with FRL unit.
  •     Extended slow final pressing with upper conveyor friction driven.

Main Technical Specification:

  • Maximum line speed : 350mts/min
  • Net Weight :2500kg to 3500kg (according to the size of m/c)
  • Motor Power :5hp to 7.5hp(AC)
  • Auto Clutch coil volts : 24 volt dc
  • Motor Drive : Variable Frequency Drive 440 volt
  • Striker Coil Volts: 230 Volts AC.
  • Carton feeding: Friction Type
  • Total general space working space required 25ft x 7ft.(*)
  •  Readily available sizes of the machine 350mm,450mm and 550mm(**)
  • Compressor motor 2 hp, air capacity 6 cfm.
  • (*) length and width can be customize according to the requirement.
  • (**) Special sizes can be created as per demand.


Working Principle
Folding method : First folding line is 120 degree, third folding line is 95 degree, and second and fourth folding line is 180 degree in straight line boxes, In this way 4 fold is possible.
