Automatic Die Punching

Get a Price/Quote

Automatic Die Punching Specification

General Use
Corrugated box, paperboard, cardboard, die cutting and creasing

Material
Mild Steel

Type
Flat bed die punching

Capacity
6,000 sheets/hour

Weight (kg)
6000 kg

Computerized
Yes

Automatic
Yes

Automatic Grade
Automatic

PLC Control
Yes

Drive Type
Electric

Voltage
380 V / 50 Hz

Motor
Main motor 5.5 kW

Dimension (L*W*H)
6500 x 2200 x 1900 mm

Conveyor Speed
Adjustable

Sealing Speed
Up to 6000 sheets/hour

Max.Feeding Size
1080 x 780 mm

Min.Feeding Size
450 x 370 mm

Color
Blue and Silver

About Automatic Die Punching

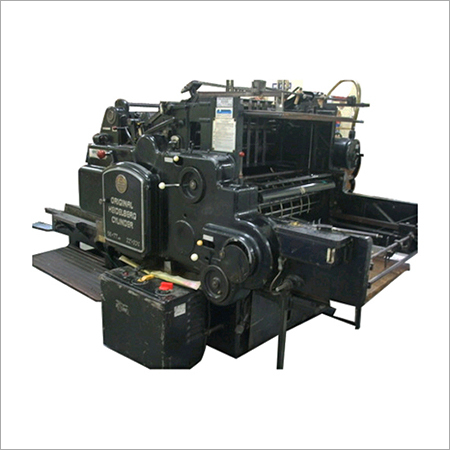

Automatic Die Punching Machine

Available with us is a wide and impeccable range of Automatic Die Punching Machines. All these machines are quite economical and perfect machine for automatic die punching process. With our manufactured Automatic Die Punching Machine, cutting becomes quite sharper as compared to other ordinary die punching machines in market. The machine has also an added feature to do a high quality Hot-foil attachment or leaf printing. Clients prefer our die punching machines as it gives an average of 3000-3500 impressions.

Further Details:

The commercial name for the above mentioned product is Cylinder Die Punching. This is a very economical and interesting solution for automatic die punching. The machine is usually available with us in all the sizes. The brief video is available through below mentioned link.

http://youtu.be/5vDuakJVIQw

We have the expertise to repair, develop spaces and accessories for the above mentioned machine. The sheet-fed feature in the machine increases the production in comparison to traditional die punching and it has very less chances of accident. Cutting is also much sharper than traditional die punching and a high quality Hot-foil attachment (leaf printing) is also possible on the machine. The Machine Usually gives 3000-3500 impressions on an average, it can give more speed it depends on the condition of the machine

Features :

PLC control
Simple operation
Highly efficient
Safe and reliable
Faster return on investment

High-Speed Automatic Die Punching

Delivering an impressive sealing speed of up to 6,000 sheets per hour, this machine streamlines large-volume die cutting for professional paper and packaging environments. The robust flat bed design achieves consistent and accurate results on a broad variety of substrates, including corrugated box materials and paperboards.

Advanced PLC and Computerized Control

Equipped with a modern PLC-based electronic control system, this die punching machine ensures seamless workflow and precise operation. The computerized interface enhances user convenience, reduces manual intervention, and minimizes error, resulting in high-quality output for every cycle.

Wide Application and Versatility

This equipment is engineered for versatility, handling multiple sheet sizes and materials ranging from cardboard to corrugated boxes. The adjustable conveyor speed and range of feeding sizes accommodate diverse production needs, making it a flexible solution for packaging manufacturers and exporters in India.

FAQs of Automatic Die Punching:

Q: How does the Automatic Die Punching Machine enhance production efficiency in packaging operations?

A: By combining high-speed operationup to 6,000 sheets per hourand automated feeding, the machine significantly reduces manual handling, improves throughput, and ensures consistent, precise die cutting and creasing for large batch runs.

Q: What materials and sizes can be processed with this die punching machine?

A: This model is suitable for corrugated boxes, paperboard, and cardboard, with feeding sizes ranging from a minimum of 450 x 370 mm to a maximum of 1080 x 780 mm, catering to a broad array of packaging needs.

Q: When is it beneficial to use this machine instead of manual punchers?

A: Automatic operation and computerized controls make this machine especially advantageous for bulk production, frequent changeovers, and operations where speed, precision, and workflow integration are key requirements.

Q: Where is this die punching machine typically used or installed?

A: It is commonly found in packaging manufacturing plants, large-scale paper goods production facilities, and industrial settings needing efficient die cutting and creasingparticularly within Indias manufacturing and exporting sectors.

Q: What is the process of operating the Automatic Die Punching Machine?

A: After configuring the PLC controls and setting feeding parameters, operators load the material, adjust the conveyor speed, and allow the machines automatic system to handle die punching, creasing, and stacking, optimizing workflow with minimal supervision.

Q: How does the adjustable conveyor speed impact operation?

A: The adjustable speed allows operators to fine-tune the workflow to match different material characteristics and production rates, ensuring optimal cutting accuracy and preventing material jams or mismatches during high-volume runs.

Q: What are the benefits of its construction and design features?

A: Constructed from durable mild steel with a 5.5 kW main motor and reliable electric drive, the machine offers longevity, stability during heavy-duty operation, and efficient power usage, making it an ideal long-term investment for packaging manufacturers.
