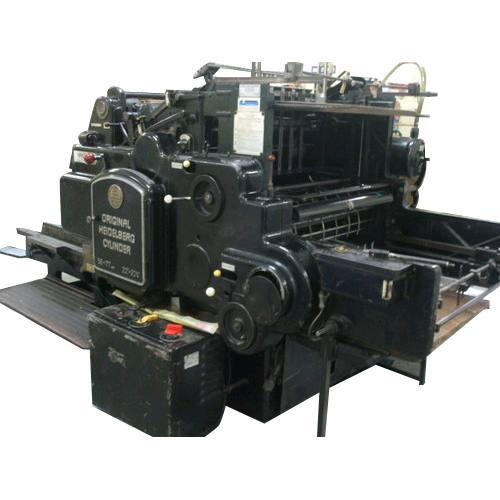

Cylinder Die Punching Machines

Get a Price/Quote

Cylinder Die Punching Machines Specification

General Use
Corrugated Box Die Cutting, Cardboard, Paper

Material
Heavy Duty Cast Iron & Steel

Type
Cylinder Die Punching Machine

Capacity
Up to 3 Tons/Day

Weight (kg)
Approx. 8500 kg

Computerized
No

Automatic
No

PLC Control
Yes

Drive Type
Gear Drive

Voltage
380V / 415V

Motor
7.5 HP

Dimension (L*W*H)
5350 x 2100 x 2050 mm

Conveyor Speed
Adjustable

Sealing Speed
Up to 3000 sheets/hour

Max.Feeding Size
1300 x 920 mm

Min.Feeding Size
450 x 370 mm

Feature
High Efficiency, Durable, Easy to Operate, Low Noise

Color
Blue & Grey

About Cylinder Die Punching Machines

Cylinder Die Punching

We have emerged as the most reputed manufacturer and supplier for Cylinder Die Punching machines. This machine is considered to be the most efficient solution for automatic die punching. As per the requirements and specifications provided by our clients, we make available all these Cylinder Die Punching machines in various specifications. Apart from manufacturing and supplying, we can also repair and develop accessories for these Die Punching Machines. Unlike other ordinary Cylinder Die Punching Machines in market, we have added a sheet-fed feature in our offered Punching Machines to enhance the production.

Additional Details:

The Machine Usually gives 3000-3500 impressions on an average, it can give more speed it depends on the condition of the machine.

Precision Engineering for High-Volume Output

Constructed for robust industrial use, this cylinder die punching machine can process up to 3 tons per day with accuracy and speed. The PLC control Interface offers seamless operation, supporting consistent quality and reduced downtime for operations requiring high-volume output.

Designed for Versatility in Packaging Needs

Whether working with corrugated boxes, cardboard, or paper, this machine adapts to a variety of materials and dimensions. Its adjustable conveyor speed and generous feeding sizes allow manufacturers flexibility to meet changing client specifications without compromising on performance.

FAQs of Cylinder Die Punching Machines:

Q: How does the cylinder die punching machine increase productivity?

A: This machine delivers high efficiency by processing up to 3000 sheets per hour and handling up to 3 tons daily. Its gear drive system and PLC control help reduce manual intervention and ensure reliable, rapid operations, boosting overall productivity in packaging and die-cutting tasks.

Q: What types of materials and products can be processed with this machine?

A: The primary application is for corrugated box die cutting, but it also expertly handles cardboard and various paper substrates. This versatility makes it suitable for packaging manufacturers, print houses, and related industries.

Q: When should the feeding sizes and conveyor speed be adjusted?

A: Adjust the feeding sizes and conveyor speed based on the specific material dimensions and production requirements. The minimum feeding size is 450 x 370 mm, and the maximum is 1300 x 920 mm, with the conveyor speed adjustable to suit different job specifications and sheet thicknesses.

Q: Where is this machine commonly used?

A: It is widely used in factories, packaging units, and print manufacturing facilities across India, especially by exporters, manufacturers, suppliers, and service providers specializing in corrugated and cardboard products.

Q: What is the process for operating the cylinder die punching machine?

A: Operator sets the desired feeding size, loads the material onto the adjustable conveyor, and uses the PLC control interface to start the machine. The gear-driven mechanism ensures precise punching, and finished sheets are automatically conveyed for collection.

Q: Which benefits does the machine offer in terms of durability and operation?

A: Made from heavy-duty cast iron and steel, the machine is built to withstand rigorous industrial use. It operates with low noise, features high efficiency, and is user-friendly, ensuring longevity and ease of maintenance for consistent, reliable performance.
