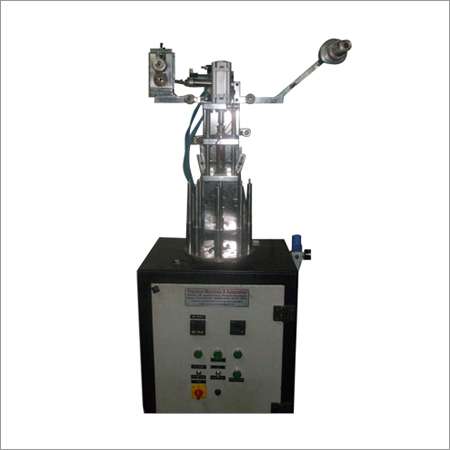

Lami Tube Sealing Machine

Get a Price/Quote

Lami Tube Sealing Machine Specification

Application
Sealing of lami tubes for cosmetic, pharmaceutical, toothpaste, and cream industries

Voltage
220V / 50Hz

Type
Lami Tube Sealing Machine

Contact Load
Standard

Production Capacity
Up to 1200 tubes/hour

Sealing Length
Adjustable up to 200 mm

Driven Type
Electric

Accuracy
1%

Color
Silver & Blue

Weight
Approx. 110 kg

Dimension (L*W*H)
1090 x 510 x 1270 mm

Power
1.5 kW

Sealing Type
Hot Air Sealing

Seals Type
Straight / Wave

Condition
New

Noise Level
Low

Heating Type
Hot Air/Gas Heater

Control System
Digital temperature and timer controller

Compressed Air Requirement
6 bar (if Hot Air)

Material of Construction
Stainless Steel

Display Type
Digital Display

About Lami Tube Sealing Machine

1. Lami Tube Sealing Machine

With the support of our professional and hard working workforce, we have emerged as one of the best manufacturers of Lami Tube Sealing Machine. We make use of only tested grade of raw materials and components in the designing of these sealing machines. Internationally acclaimed for its superior quality, these Lami Tube Sealing Machines are available with us at the most moderate prices.

The machine is having some great features:-

Indexing (rotary) is used, it facilitates proper sealing time to the tube and provides safety to the fingers of the operator
Temperature can be varied through PID controllers
Different Profile (Shape) of punch or sealing can be accommodated and very much possible on the machine.
45-50 tubes can be sealed in a minute easily
Pneumatic Ratchet bearing mechanism for movement of the foil
Dove-Tail mechanism for centering of the die
Different sizes of the tube can be sealed by changing the mandrills.

Versatile Sealing for Multiple Industries

Designed for versatility, this lami tube sealing machine caters to the cosmetic, pharmaceutical, toothpaste, and cream manufacturing sectors. Its adjustable sealing length accommodates different tube sizes, and the choice between straight or wave seals ensures product integrity and aesthetic requirements are met. Robust stainless steel construction provides lasting durability even in demanding industrial environments.

Advanced Control and Monitoring

With a digital temperature and timer controller combined with a clear digital display, users have full command over the sealing process. The hot air/gas heater ensures consistent seal quality, while accuracy of 1% helps maintain high standards in production. Low noise levels and safety features make this machine suitable for large scale or continuous operation.

FAQs of Lami Tube Sealing Machine:

Q: How does the Lami Tube Sealing Machine achieve consistent and precise seals?

A: The machine uses a digital temperature and timer controller paired with a hot air or gas heater, ensuring stable heating for uniform seals. Its accuracy rating of 1% and adjustable sealing length further optimize the sealing process for various tube specifications.

Q: What materials are compatible with this sealing machine?

A: This machine is specifically designed for lami tubes, which are commonly used in packaging for cosmetics, pharmaceuticals, toothpaste, and creams. The straight or wave seal options provide flexibility for different product lines.

Q: When should the compressed air requirement be considered?

A: Compressed air (at 6 bar) is only needed when operating the hot air sealing function. This provides the necessary airflow to achieve consistent heating and reliable sealing results.

Q: Where can this machine be installed and used?

A: Given its relatively compact dimensions and low noise operation, this machine is suitable for installation in manufacturing facilities, pharmaceutical labs, cosmetics factories, and similar production environments.

Q: What is the process for sealing tubes with this machine?

A: Tubes are placed in the sealing position, and the digital controller adjusts temperature and timer settings based on the material and seal type. Hot air or gas heats the tube ends, and the machine applies pressure to create either a straight or wave seal.

Q: How is the machine operated and monitored?

A: All major functions such as temperature, timer, and sealing type are monitored and managed through its digital display and controllers. This enables operators to make real-time adjustments, ensuring optimal productivity and quality control.

Q: What benefits does this sealing machine provide over manual sealing methods?

A: The Lami Tube Sealing Machine boosts productivity with speeds of up to 1200 tubes per hour while enhancing seal consistency, reducing error rates, and minimizing operator strain. Its automated features deliver reliable, professional packaging for diverse industries.
