Top Sealing Machine

Get a Price/Quote

Top Sealing Machine Specification

Weight
35 kg

Packaging Speed
Up to 900 seals/hr

Voltage
220 V / 50 Hz

Contact Load
Max 3 kg load on conveyor

Sealing Length
Unlimited (depends on conveyor)

Condition
New

Driven Type
Electric

Filling Capacity
Up to 3 kg

Automation Grade
Semi Automatic

Application
Pouch / Bag / Packet Sealing

Color
Grey & Blue

Dimension (L*W*H)
820 x 370 x 320 mm

Power
650 W

Sealing Type
Heat Sealing

Accuracy
High Precision

Seals Type
Continuous Heat Seal

Type
Top Sealing Machine

Body Material
Mild Steel / Stainless Steel

Control Panel
Digital Temperature & Speed Controller

Conveyor Width
Up to 200 mm

Working Height
Adjustable (stand model)

Temperature Range
0°C to 300°C (adjustable)

About Top Sealing Machine

Top Sealing Machine

Our company is recognized as one of the most profound manufacturers and exporters of Top Sealing Machine. The sealing machines manufactured by us are immensely acknowledged in industries among our long list of clients. All these Top Sealing Machine are wisely manufactured by us utilizing premium class of raw materials and components. We have specially established state of the art manufacturing unit so as to implement world class mechanisms. Our clients can avail these sealing machines at affordable prices.

Features :

Hand-held
Low power consumption
Takes up less space
Easy to operate
Higher efficiency

Description :

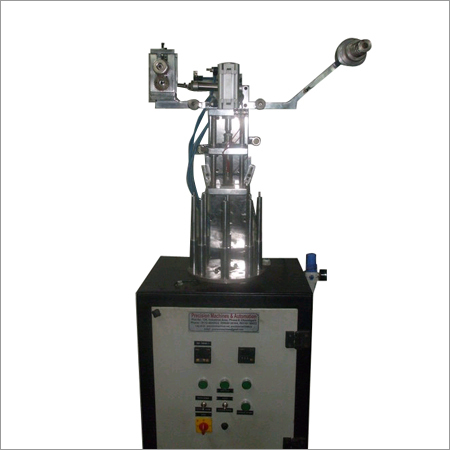

The above machine is a rotary indexing based top sealing machine for Lami tube (Flexible tube).

The machine is having some great features:-
Indexing (rotary) is used, it facilitates proper sealing time to the tube and provides safety to the fingers of the operator
Temperature can be varied through PID controllers
Different Profile (Shape) of punch or sealing can be accommodated and very much possible on the machine.
45-50 tubes can be sealed in a minute easily
Pneumatic Ratchet bearing mechanism for movement of the foil
Dove-Tail mechanism for centering of the die
Different sizes of the tube can be sealed by changing the mandrills.

Versatile and Durable Construction

Crafted from high-quality mild steel or stainless steel, this top sealing machine offers both longevity and resistance to wear, making it an excellent choice for busy manufacturing, packaging, and export operations. The robust construction ensures consistently reliable performance, even under demanding workloads and environments.

Advanced Control and Precision

Equipped with a digital temperature and speed controller, the machine allows users to fine-tune sealing parameters within a 0C to 300C range. This ensures precise heat application for a variety of packaging materials and thicknesses, resulting in strong, uniform seals and reduced material wastage.

Efficient and Adjustable Operation

Featuring an adjustable working height and a conveyor width up to 200 mm, this sealing solution accommodates diverse package sizes. The semi-automatic design enables quick sealing of up to 900 units per hour, making it suitable for companies with high-volume packaging needs while enhancing workflow efficiency.

FAQs of Top Sealing Machine:

Q: How does the top sealing machine ensure high-precision sealing?

A: The machine utilizes a digital temperature and speed controller, allowing precise adjustments within a 0C to 300C range. This ensures optimal heat application for different pouch and packet materials, delivering strong, uniform seals each time.

Q: What types of packaging can this sealing machine handle?

A: It is suitable for sealing pouches, bags, and packets made of various materials. The adjustable conveyor width (up to 200 mm) and unlimited sealing length provide flexibility to accommodate different package sizes within a 3 kg capacity.

Q: Where can this top sealing machine be used?

A: This sealing machine is ideal for use in packaging industries, export businesses, and manufacturing plants across India. Its robust design and adjustable features make it adaptable to diverse operational setups.

Q: When should I adjust the temperature settings on the machine?

A: Temperature settings should be adjusted when sealing packages of varying material types or thicknesses. The digital control panel allows you to easily set the required temperature to achieve optimal seal quality for each application.

Q: What is the process for operating the top sealing machine?

A: To operate, set the desired temperature and speed via the digital control panel, adjust the working height and conveyor width to fit your product, and feed the filled pouch or bag onto the conveyor. The machine continuously heat seals as packages pass through, ensuring efficient throughput.

Q: How does using this machine benefit my packaging operations?

A: The machine increases sealing speed (up to 900 seals per hour), provides consistent quality, and reduces downtime thanks to its semi-automatic design and durable buildultimately boosting productivity and operational efficiency.
