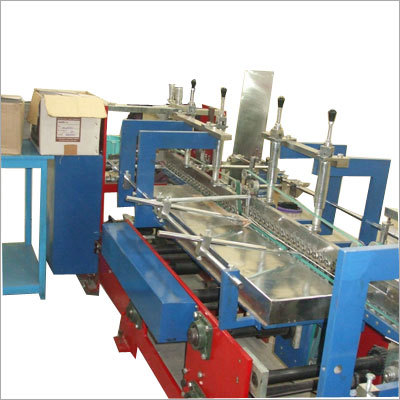

Pasting Machine CFL Sleeve:
We are manufacturing and supplying high speed carton folding and gluing machines for straight line carton i.e.. side pasting carton with four folds and ensuring high degree of accuracy, we ensure very low changeover time, These machines are versatile enough that they do small cartons to very large unbalanced cartons very easily i.e. for ex:- a match box or 10 ml syrup carton to welding electrode or outer box of some pharma capsule. These machines ensure proper spring action in carton, Carton done on these machines ensure proper compatibility with different filling and packing machines throughout the world.
SPECIAL FEATURE :
MACHINE IS CAPABLE OF PASTING Machine CFL Sleeve AT VERY HIGH PRODUCTION RATE .
Machine having following features:
- Friction feeder with clutch drive for independent functioning of the module(Electromagnetic type 24 vdc).
- Digital counter for Batch, Total product, and Number of pieces.
- Main motor AC with AC variable digital frequency drives system.
- Thickness adjustment of tracks: The tracks are based on exuberant German design it adjust the thickness of the carton dramatically, In single setting both duplex and three ply may run.
- Robust Fabricated Structure: It is made from heavy grounded 16mm thickness plates so that at high speed the machine may not vibrate
- Imported anti-vibration pads are used for leveling and for vibration free operation
- Imported Belts for the tracks are used (i.e. nylon sandwich belt)
- Glue tank with S.S. body, wheel hard chromium plated.
- Variable speed of the end press section through variable dia pully so that the length of the carton could be adjusted easily before final pressing.
- Electromagnetic Striker For Making Batches, it has fast response time and can be adjusted very easily for both A & B side of the carton.
- Four fold of the carton is possible and we ensure that there should be proper spring action in the carton for automatic filling of the product
- All sealed bearings for avoiding jamming by paper dust
Main Technical Specification
- Maximum line speed : 350mts/min
- Net Weight :2500kg to 3500kg (according to the size of m/c)
- Motor Power :5hp to 7.5hp(AC)
- Auto Clutch coil volts : 24 volt dc
- Motor Drive : Variable Frequency Drive 3¸,440 volt
- Striker Coil Volts: 230 Volts AC.
- Carton feeding: Friction Type
- Total general space working space required 25ft x 7ft.(*)
- Readily available sizes of the machine 350mm,450mm and 550mm(**)
- (*) length and width can be customize according to the requirement.
- (**) Special sizes can be created as per demand.
- Working Principle
- The basic formation of pasting box is paper-feeding
- Automatic friction feeder which enables continuous paper-feeding
- Folding method: First folding line is 120, third folding line is 95°, and second and fourth folding line is 180° in straight line boxes, In this way 4 fold is possible.
|
