Coater for Brakes Specification

Product Type
Brake Coating Machine

General Use
Brake Pad and Lining Coating

Material
Mild Steel and Stainless Steel

Type
Automatic Coater for Brakes

Capacity
Up to 1800 pieces/hour

Weight (kg)
850 kg

Computerized
Yes

Automatic
Fully Automatic

Control System
PLC Control

Stamping Plate Size
380 x 420 mm

Stamping Power
8 Tons

Stamping Speed
15 cycles/min

Stamping Temperature
Adjustable (Up to 200C)

Power Consumption
4 kW

Plate Type
Flat Plate Coater

Heating Power
3.5 kW

Voltage
380V / 50Hz

Dimension (L*W*H)
1850 x 1200 x 1600 mm

Color
Blue / Grey

About Coater for Brakes

Coater for Brakes

With the support of our competent workforce, we have gained immense recognition for manufacturing and supplying excellent quality Coaters for Brakes. All our manufactured coaters are broadly used in industries for coating brakes and stampings with ethanol and other chemicals as required. This Coater for Brakes is specially used for enhancing the productivity as it is integrated with durable and high featured control panel to control the temperature and speed during the process. Our clients can avail all these coaters at the most moderate prices.

Further Details:

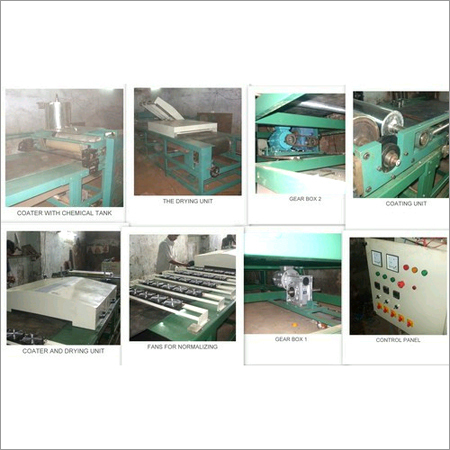

This is a high production solution for coating ethanol and other related chemicals on disc brakes or any type of stampings,very robust and especially for bulk production. This product is having a over conveyor coating unit with specially designed worm mechanism for up and down movement,it also provides suspension action.

It is having a heating unit and a normalizing unit through fans.With this unit a separate drying unit can be connected so as to give more drying time to the product . The working width of the conveyor is normally 24 inch and the length of the machine is usually 6 meters and a18 ft separate drying unit can be connected with unit for greater efficiency

The above mentioned coating unit is particularly beneficial for the brakes,clutches and any type of stamping manufacturers who are seeking high rate of production in coating on the surface. Machine is having a durable and high featured control panel , for temperature control there are PID, for speed control there is V F D , and it is fully loaded with safety and interlocking features, there is dual gear box system in machine.

Advanced PLC-Controlled Coating Precision

The automatic coater incorporates a modern PLC control system, facilitating user-friendly operation and accurate coating processes. Its computerized management allows operators to monitor and fine-tune parameters for each batch, resulting in uniform coatings and minimal wastage.

High Throughput and Consistency

Capable of handling up to 1800 pieces per hour at 15 cycles per minute, this coater ensures scalability and efficiency for brake pad and lining production. Its robust, flat plate design delivers consistent pressure, ensuring each part receives an even coatingcritical for safety and performance standards.

Durable Construction and Energy Efficiency

Built from mild steel and stainless steel, the machine is durable and resistant to wear. With a heating power of 3.5 kW and total power consumption of 4 kW, it balances operational strength with energy efficiency, supporting sustainable manufacturing practices.

FAQs of Coater for Brakes:

Q: How does the automatic coater enhance the brake pad coating process?

A: The automatic coater employs PLC control and computerized functions, ensuring precise temperature adjustment and consistent application on each piece. Its fully automatic, high-speed operation facilitates uniform coatings while significantly reducing manual intervention and errors.

Q: What are the main benefits of using this automatic brake coater?

A: Key advantages include superior coating consistency, high production capacity of up to 1800 pieces per hour, and user-friendly controls. The robust construction and adjustable parameters enhance production flexibility and overall product quality.

Q: When should you use a flat plate coater for brake pads and linings?

A: This flat plate coater is best used when uniform thickness and high precision are required in the application of coatings on brake components, particularly in high-volume production lines where reliability and process accuracy cannot be compromised.

Q: Where can the automatic coater be installed and operated?

A: The machine is suitable for installation in manufacturing facilities, workshops, or centralized production plants specializing in brake pad and lining manufacturing. Its dimensions and sturdy design allow for seamless integration into existing production lines.

Q: What is the process of coating brake pads using this machine?

A: Operators load brake pads onto the flat stamping plate. The system, managed via PLC controls, automatically applies the coating material at adjustable temperatures (up to 200C) and pressure (8 tons), then cycles to the next unit at a speed of 15 cycles per minute.

Q: How does computerized control improve coating quality?

A: Computerized PLC controls allow for precise management of temperature, pressure, and cycle timings, reducing human error. This consistent control delivers predictable, high-quality results across all batches, improving overall reliability.
